Tubular Handrail Standards

Ball Type Stanchions
  • Comprehensive and flexible system of industrial handrailing.
  • Typical applications: Roof edges, Mezzanine Floors, Staircases etc.
  • Galvanised, Self Colour (mild steel) and stainless steel finishes available
  • To suit 33.7mm, 42.4mm and 48.3mm rails depending on application.
  • Can be manufactured to customer's specifications.

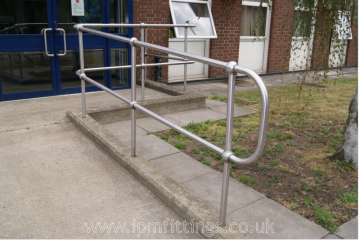

Stainless Steel Ball Type Handrailing
IPM Fittings supply this industrial handrail system to many industries for use in a multitude of environments.

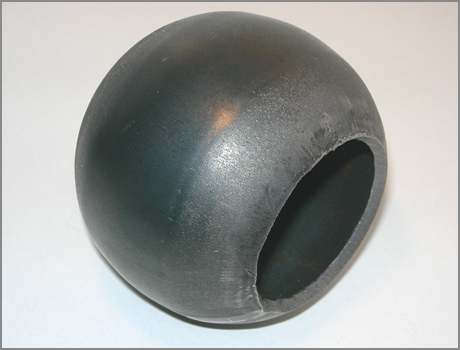

The system consists of "Ball" type handrail posts which, when used in conjunction with tubing, forms a complete handrail / guardrail construction. Once the rails have been passed through the 'ball', the rails are locked into position by way of a grub-screw with an allen key.

Different post diameters, wall thickness and spacing with a variety of base types mean that the majority of loading requirements are met.

The system is easily erected/dismantled in small sections and can be "tailored" to suit many applications.

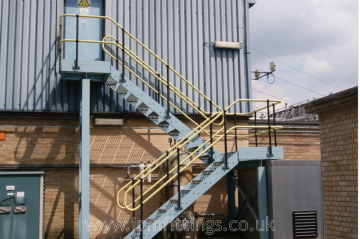

Tubular Ball Type Handrail Standards used on a warehouse fire escape.

Associated Handrailing Products

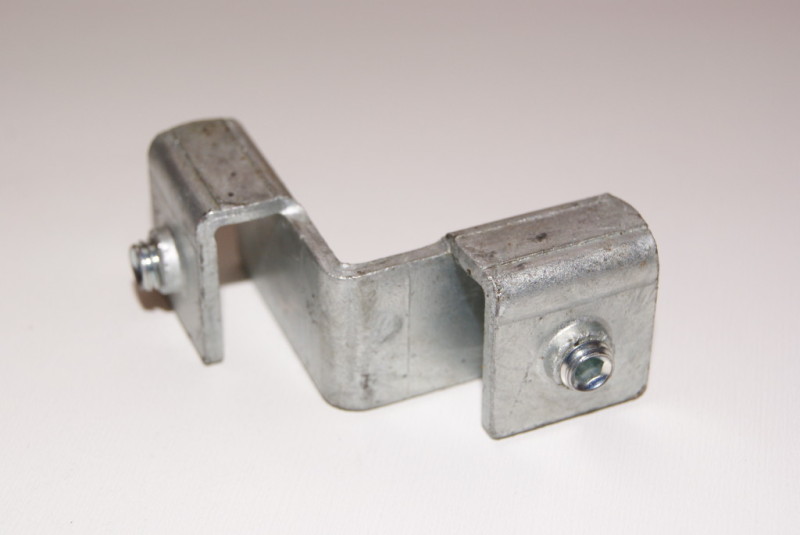

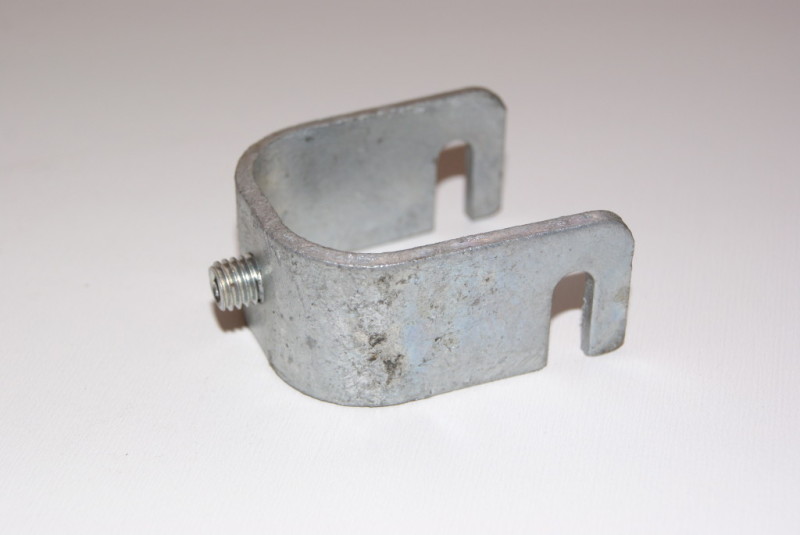

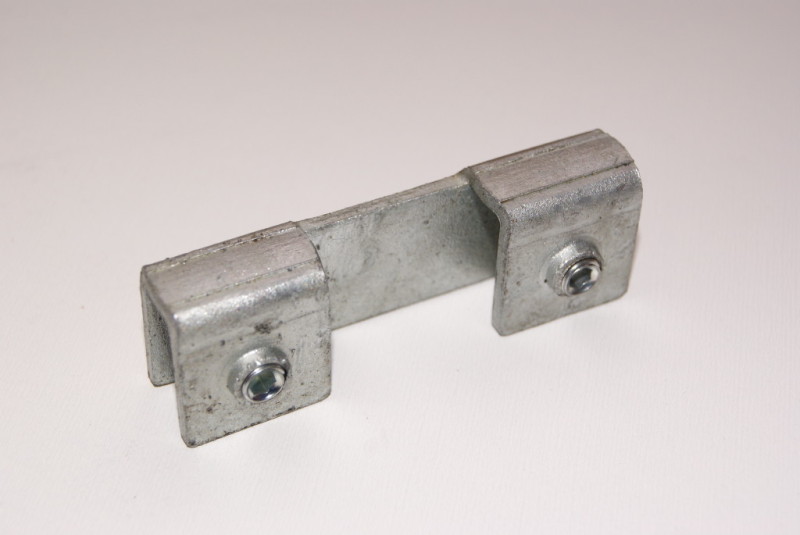

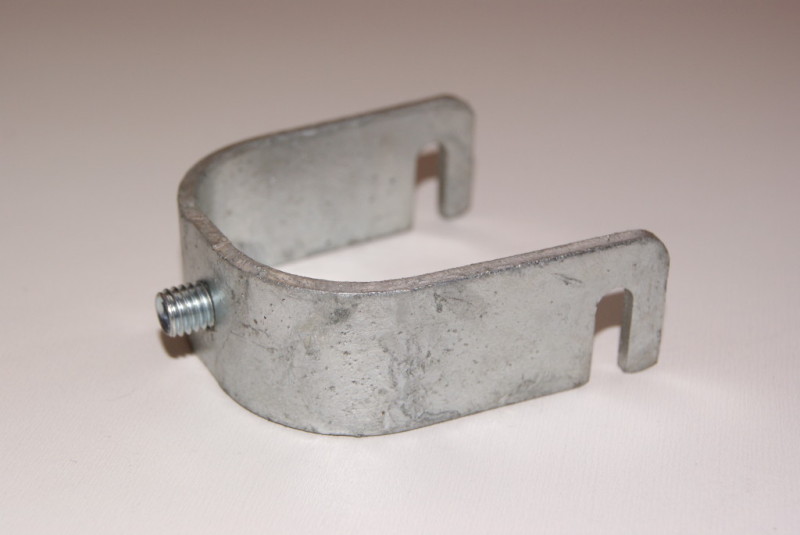

Toe Board Adaptor Fittings

For Connecting Kick Plates to Handrail Stanchions

Contact our Sales Department Today on (020) 8666 0158 for a Competitive Quotation
